QIFA Co-Extruded WPC Seamless Decking

Our seamless decking QG145H23W not only has amazing interlocking side groove, it also takes on a seamless appearance, making the surface look more smooth and charmful.Other than its aethestic appearance,QG145H23W  is composed of wood-plastic composite materials and high molecular polymer fabric, it is designed to withstand moisture, UV exposure, and surface wear, it is quite resistant to ultraviolet radiation, moisture, fungi and mold.The great performance make it has a very long service life and suitable for various scenarios.

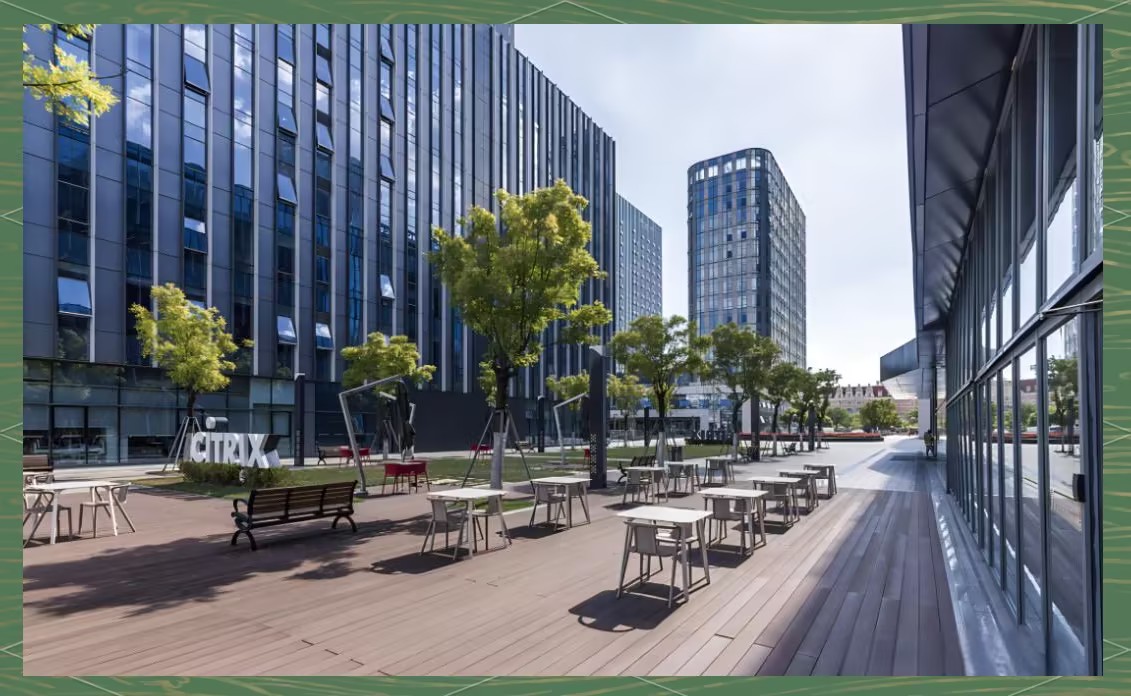

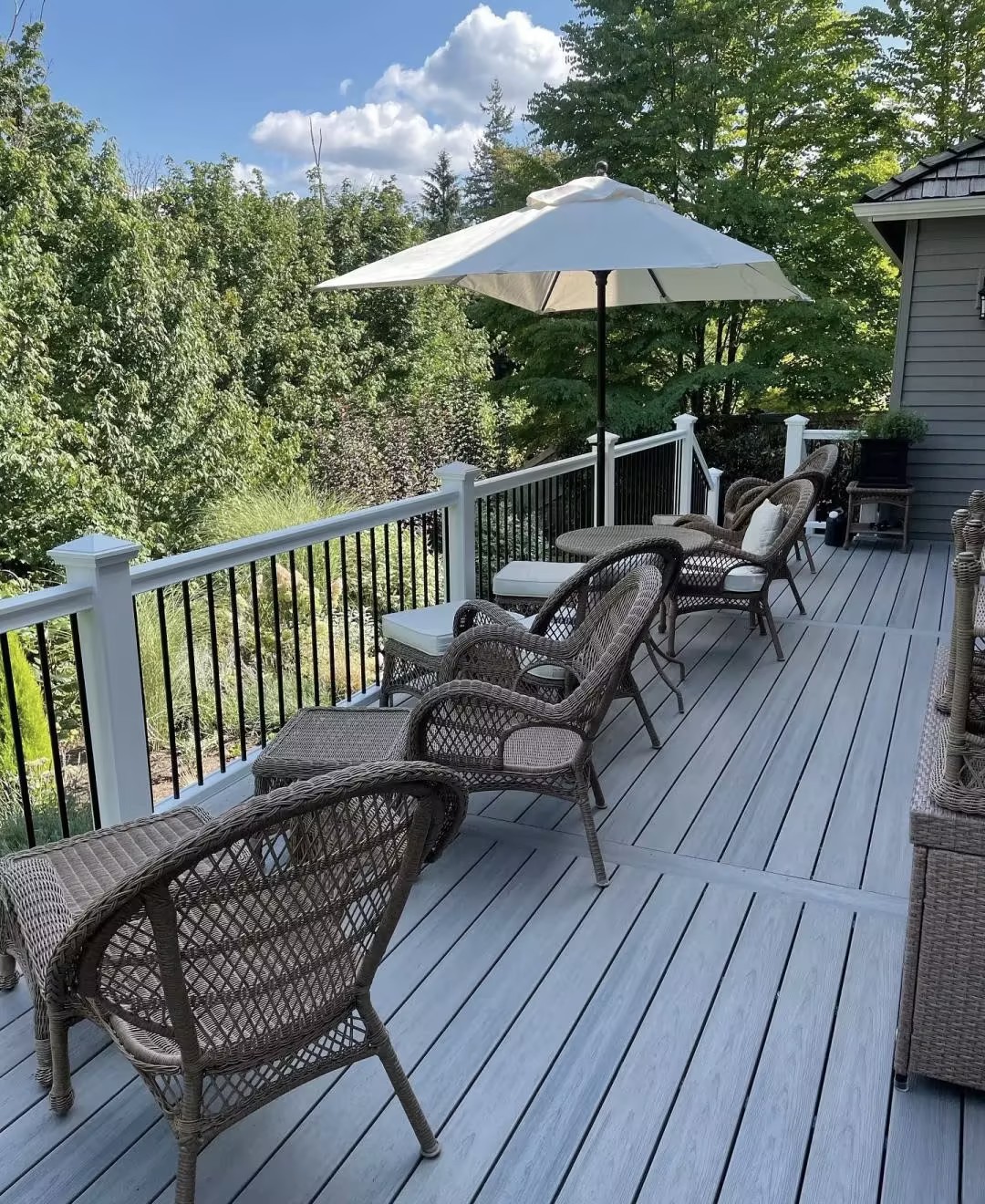

Applications

Courtyard decking&patios

Poolside decks

Balcony&rooftop decking

Commercial street sidewalk

Landscape walkway

Outdoor dining decks

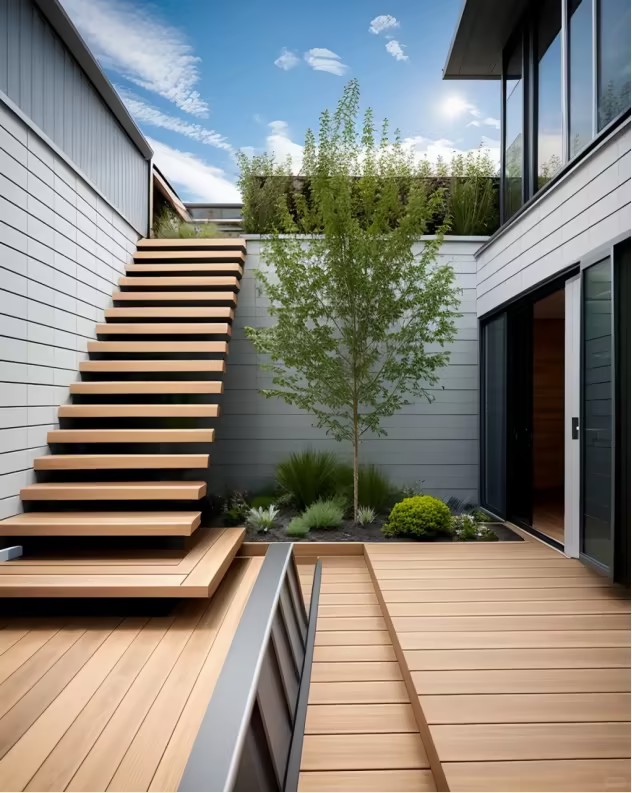

Courtyard decking & upstair

Rooftop terrace decking

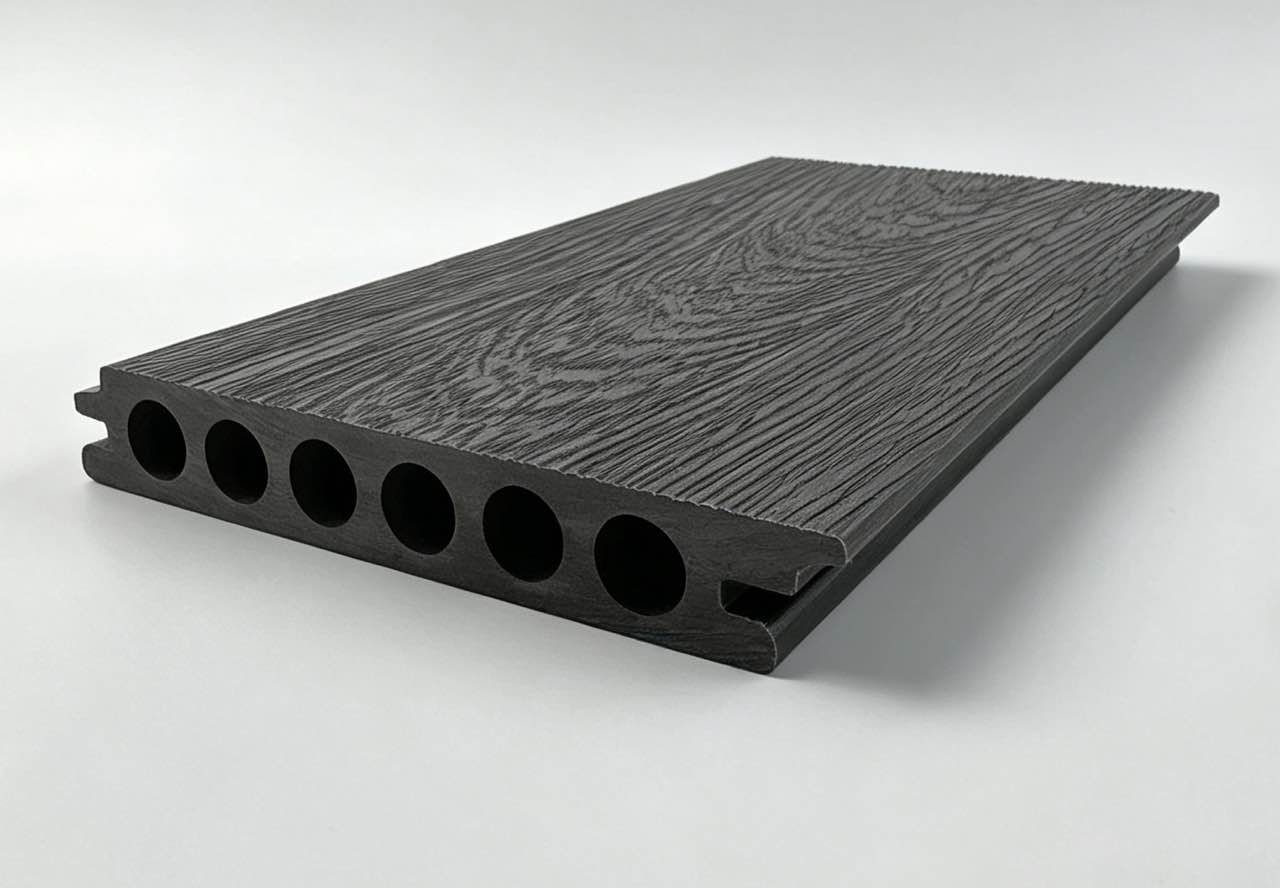

Detailed image:

Key specifications

Width:145mm

Height:23mm

Length:2M/2.9M/Customizeble

Weight/Meter: 2.72 kg/m

Tolerance:Length ±5 mm, width ±1 mm, thickness±0.5 mm

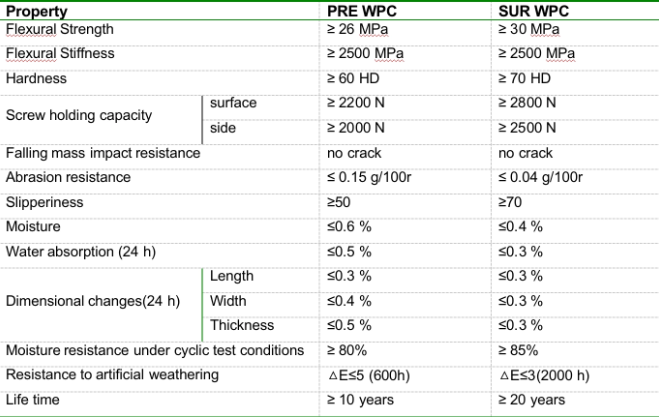

Technical parameters:

Qifa's products are classified into two categories: PRE WPC and SUR WPC; QG145H23 is part of SUR WPC decking board; The property comparison  of the both is shown as above.

Available options:

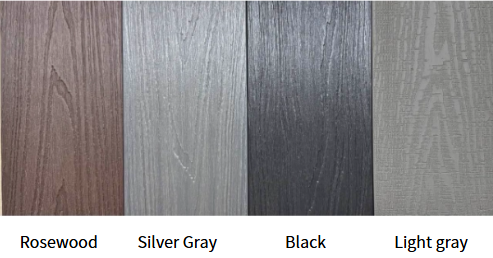

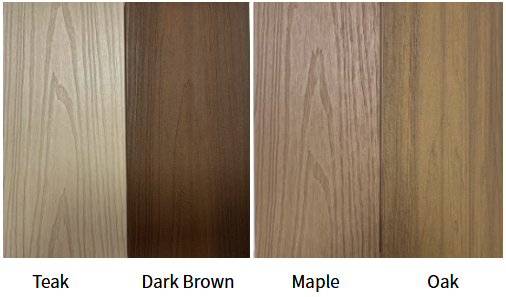

Available colors

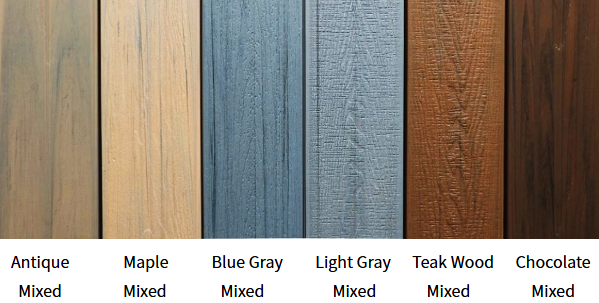

Mixed color options

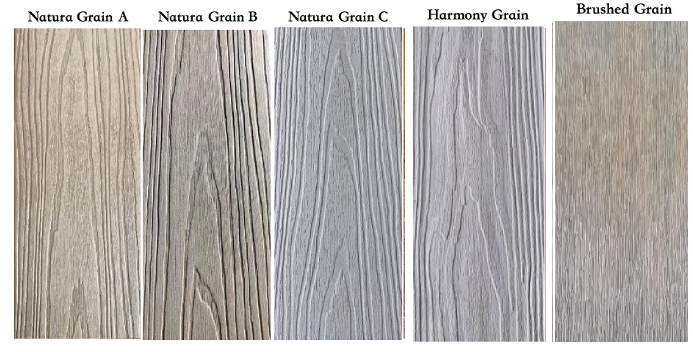

Available Finishes:

Note

Colors/Finishes shown on screen are for reference; final selection should be confirmed with physical samples.

Tips

No color you want, we support color and finish customization, please don't hesitate to contact us.

Application Limits

Long-term underwater environment

Under consistent heat damage

Pave without joist draught

High-altitude plank walkway

ACCESSORIES&INSTALLATION

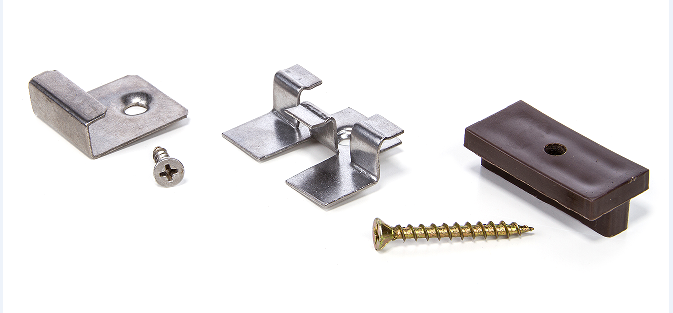

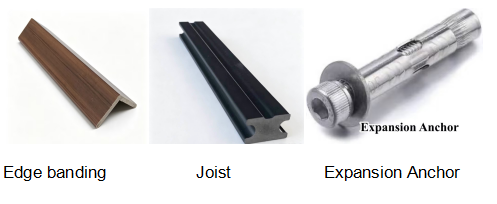

Accessories:

• Clips: Stainless steel clips are used for installation, which are designed to fit perfectly with QG145H23W decking boards.

• Screws: Stainless steel screws are used to secure the clips onto the joists.

• Joists: QG145H23W decking can be installed on wood or steel joists, which should be spaced at a maximum of 40 cm (16 inches) apart for optimal stability.

• Edge Banding: Edge bandings can be installed around the perimeter of the decking to provide a clean finish and cover up the gaps between the boards and the ground.

Accessories Ratio Guidance

The quantities of accessories required vary depending on deck dimensions, board layout, joist spacing, substrate conditions and cutting allowance. Please share your project details with us for a project-specific material estimate.

Installation:

• Preparation: Ensure that the substructure is level, stable, and free from any debris or obstacles. Decide on the direction and pattern of the decking boards before starting the installation process.

• Fixing the joists: Fix the joists onto the substructure with appropriate screws or bolts, ensuring that they are level and spaced correctly.

• Installing the clips: Install the clips onto the joists, ensuring that they are aligned with the edge of the joists and spaced at a maximum of 40 cm (16 inches) apart.

• Installing the decking boards: Starting from one end of the decking, place the first board onto the clips, ensuring that it is aligned and level. Then, fix the board onto the clips with screws, making sure that they are flush with the surface of the board. Repeat this process for each subsequent board, ensuring that there is a gap of 6-8 mm (0.24-0.31 inches) between each board for ventilation and expansion.

• Finishing: Once all the decking boards have been installed, cut and install skirting boards around the perimeter of the decking to cover up the gaps between the boards and the ground.

Note: It is recommended to leave a gap of at least 10 mm (0.4 inches) between the end of the decking board and any adjacent structure, such as a wall or fence, to allow for expansion and contraction of the board due to changes in temperature and humidity. Additionally, it is important to follow the installation guidelines provided by the manufacturer for optimal performance and durability of the decking.

Order Information

MOQ

Our standard minimum order quantity is a full container load. For initial trial orders, the minimum quantity per specification and color starts at 200 m². Mixed-model or mixed-color container loads may also be considered, subject to production compatibility and container loading requirements.

Warranty

Limited warranty

Install the composite decking according to the relevant installation guide to maintain warranty coverage. See the full limited warranty terms for details and exclusions.

Sample&Wholesale Quote

Ready to get more information about hollow composite decking?

Request physical samples, or send your project requirements for a wholesale quotation.
